Hidden Access Hatch Mounting System Edplit – for Panels up to 400×500 mm

from £84.00

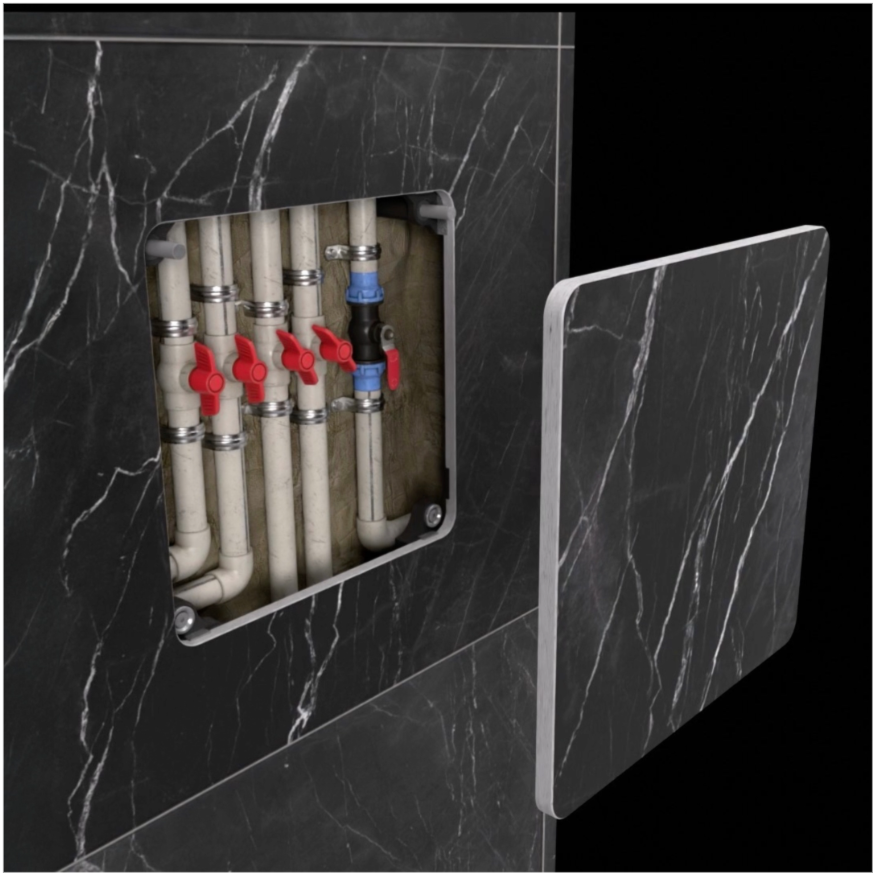

The EDPLIT Universal Concealed Access Hatch is a versatile and customizable solution designed to provide easy access to concealed areas in walls and partitions. Perfect size 300×200 mm (can work up to 400×500 mm). The set includes components required for installation.

The kit can be supplied with or without consumables for tile cutting.

Tile-cutting consumables:

The EDPLIT Universal Concealed Access Hatch is a versatile and customizable solution designed to provide easy access to concealed areas in walls and partitions. Perfect size 300×200 mm (can work up to 400×500 mm). The set includes components required for installation.

The kit can be supplied with or without consumables for tile cutting.

Please see our Terms & Conditions for information on product variations and installation compatibility.

Not sure which option to choose? Click here


Video illustrates how hidden access hatch is designed.

Installation and adjustment

You no longer need to worry about standard manufacturer sizes fitting your specific layout. The Edplit system allows you to create a custom access void of any dimension—from a discreet 70 x 70 mm up to 400 x 500 mm—tailored exactly to your project requirements.

Tile cut-outs can be performed manually using a tile engraver or via precision water-jet cutting. While manual cutting is efficient for standard installs, water-jet cutting is ideal for premium tiles or natural stone to ensure a flawless, architectural finish.

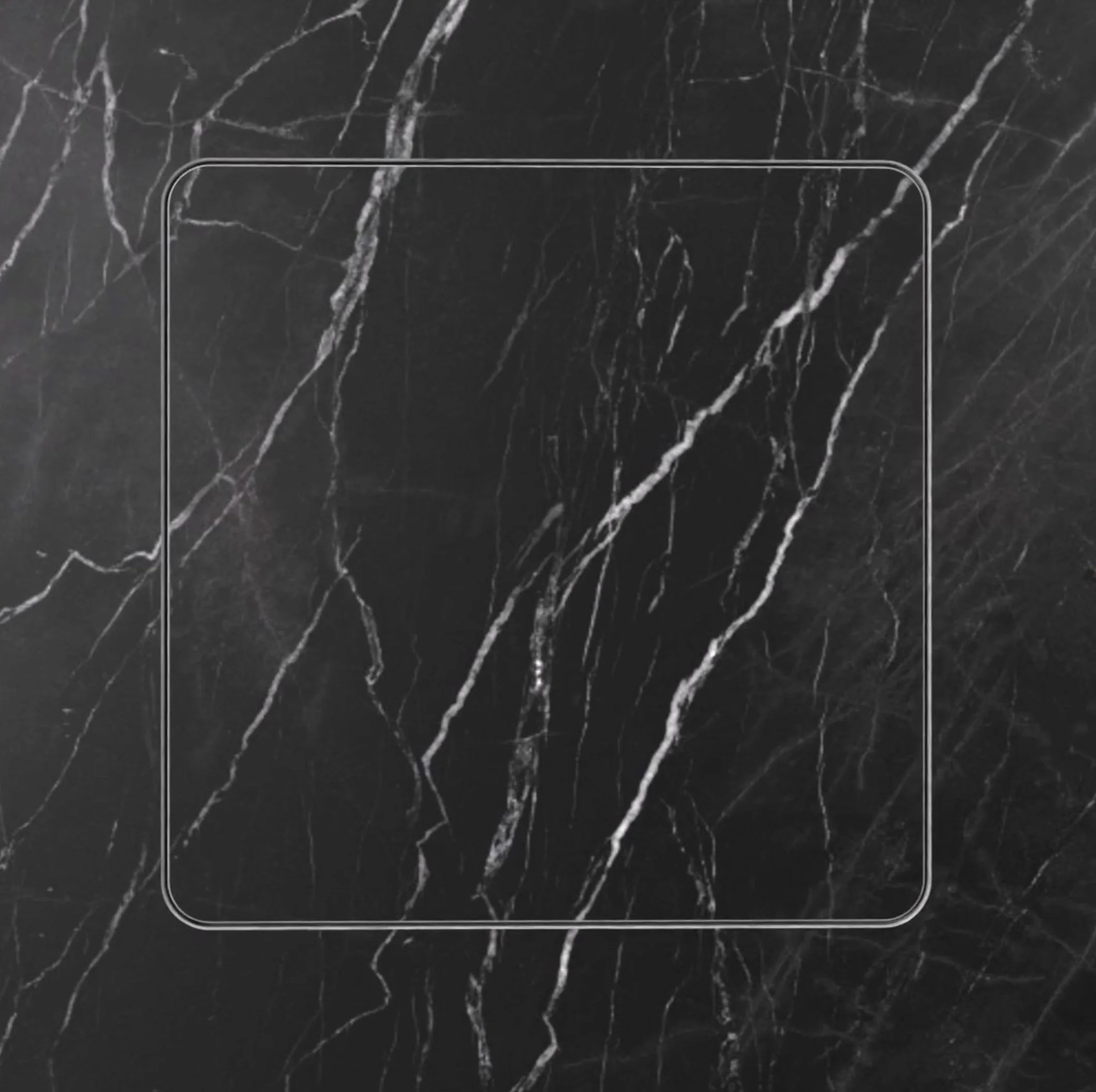

The system blends seamlessly with ceramic, porcelain, or natural stone surfaces and is compatible with tile thickness up to 12 mm.

If you are using water jet cutting for your project, please contact us to get your drawing files.

Watch the detailed installation video and demonstration

Safety & Best Practice

At Yaromaister, we advocate for the highest standards of safety on every project. When performing tile cut-outs or using the included core drill bit:

  • PPE: Always wear appropriate Personal Protective Equipment, including safety goggles and a high-efficiency dust mask (FFP3 rated).

  • Dust Control: We recommend wet-cutting where possible or using a dedicated vacuum extraction system to minimize airborne silica dust.

  • Handling: Ensure all power tools are handled by competent individuals in accordance with the manufacturer's instructions.

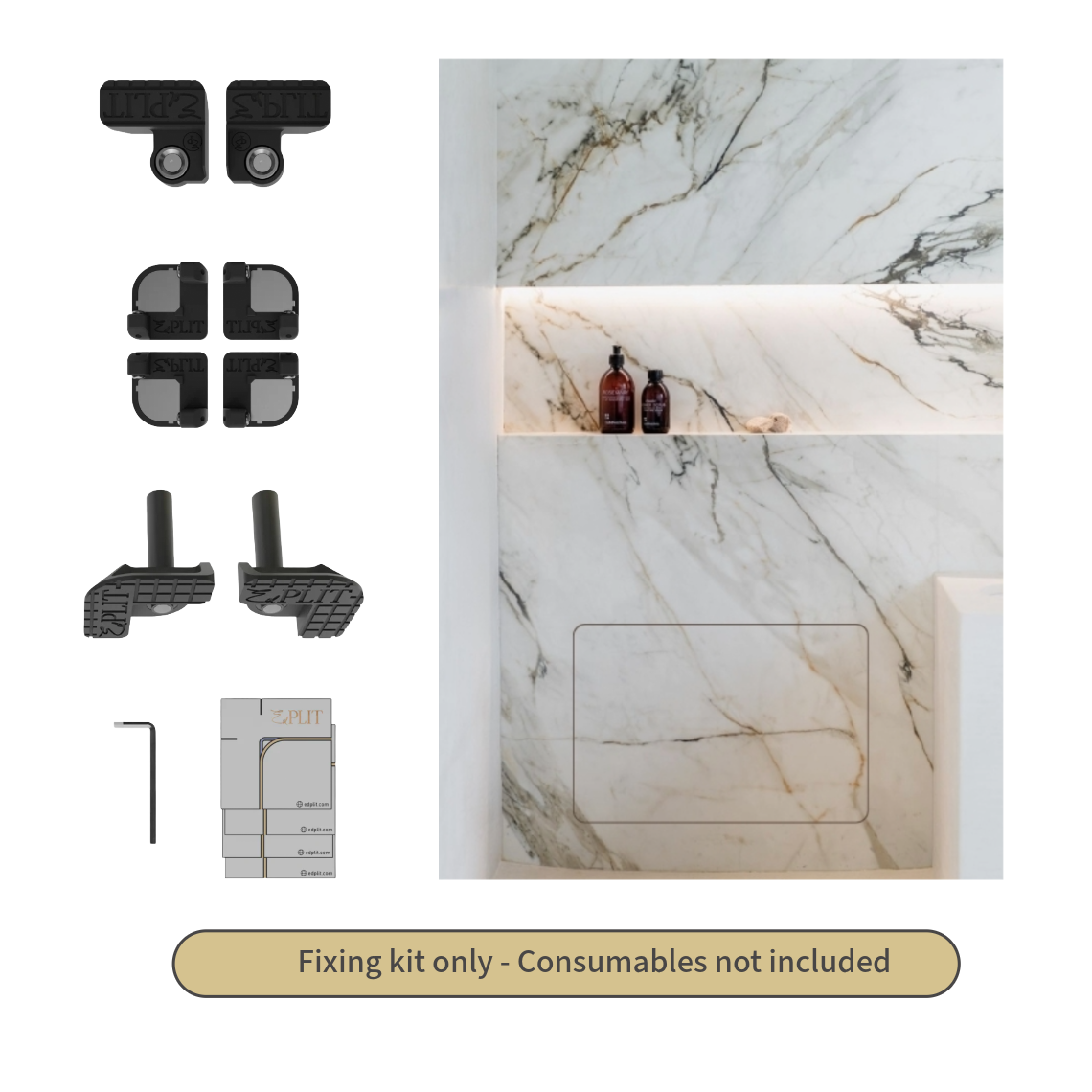

What is in the box

·       Push-open magnetic components

·       Magnetic components for corners

·       Magnetic components for panel

·       Adjustment tool

·       Adhesive stickers with cut-out template

Consumables (optional):

·       Tile cutting disc with holder

·       Tile sanding discs with holder

·       Drill bits

Proven durability

·       Proven durability: Tested in 500+ projects worldwide

·       2-year warranty

Delivery & Returns

·       Next-day dispatch from our UK warehouse

·       Free UK delivery

·       Full Delivery & Returns details available in our Terms & Conditions
