Hidden Exhaust Fan Mounting System Edplit - Compatible with Duct Fans 100/125/150 mm

from £121.00

This product is a concealed mounting system that allows you to integrate a standard axial or duct fan discreetly into your bathroom or toilet space. Standard kit includes all required installation hardware. Available with or without tile-cutting consumables.

Extractor fan not included in the kit.

Tile-cutting consumables:

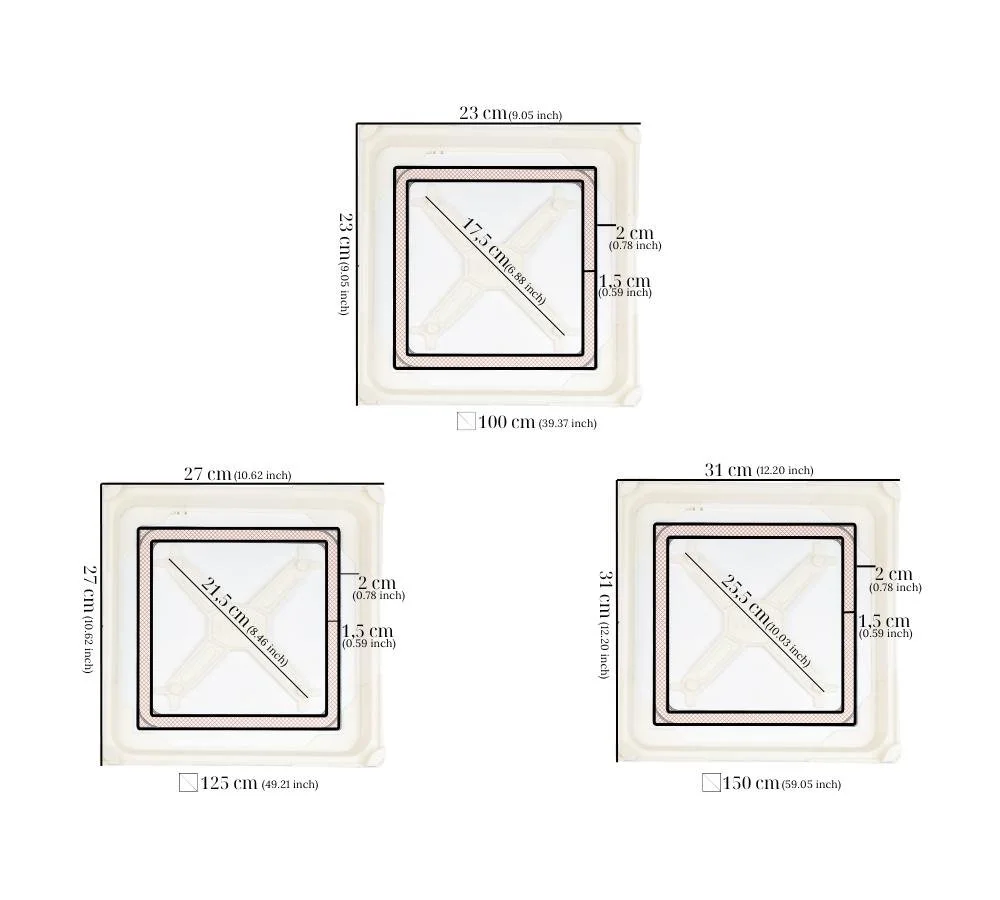

System size:

Extractor fan not included in the kit.

Please see our Terms & Conditions for information on product variations and installation compatibility.

Not sure which option to choose? Click here

The video illustrates how the extractor fan mounting system is designed.

Installation and adjustment

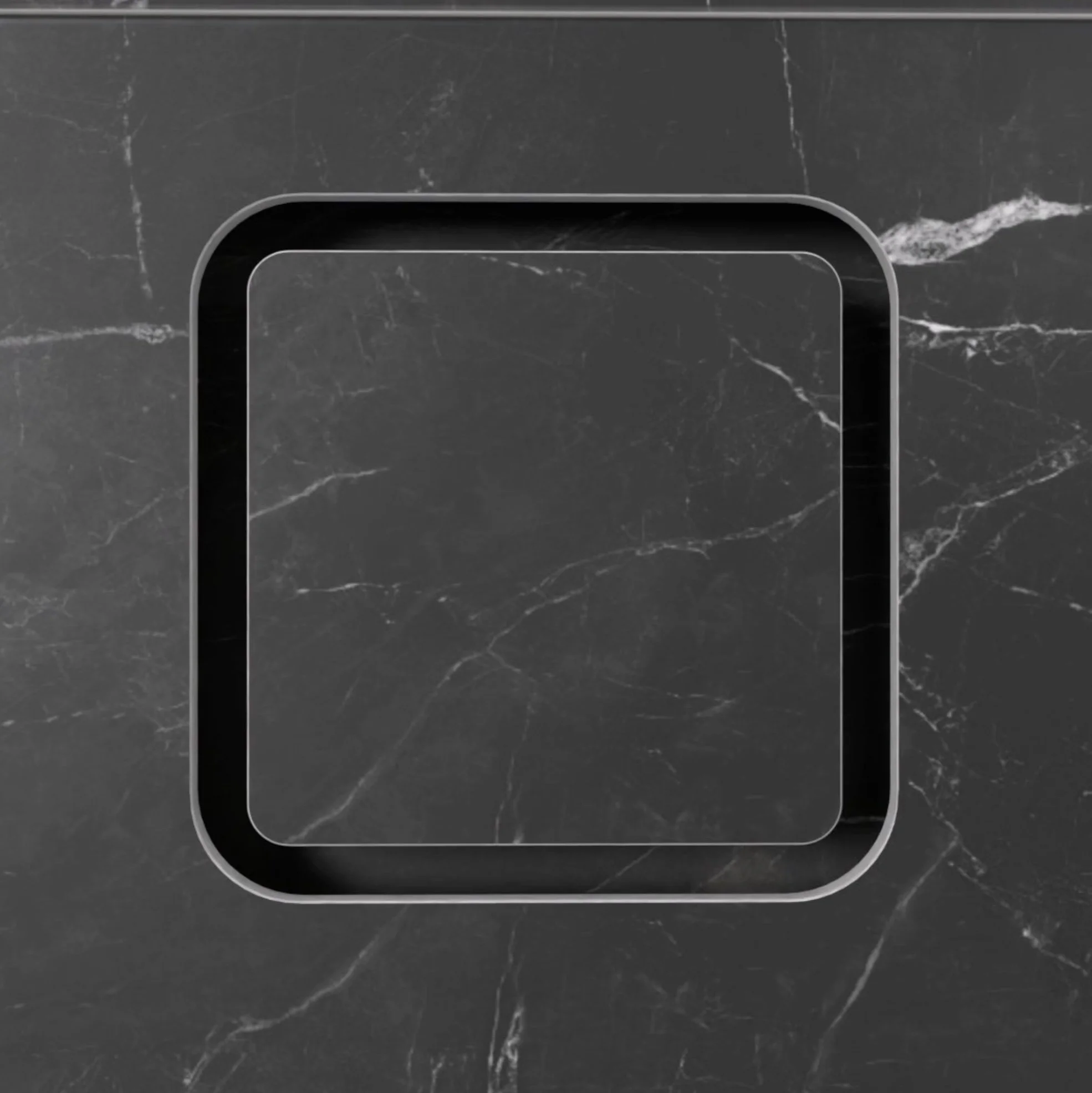

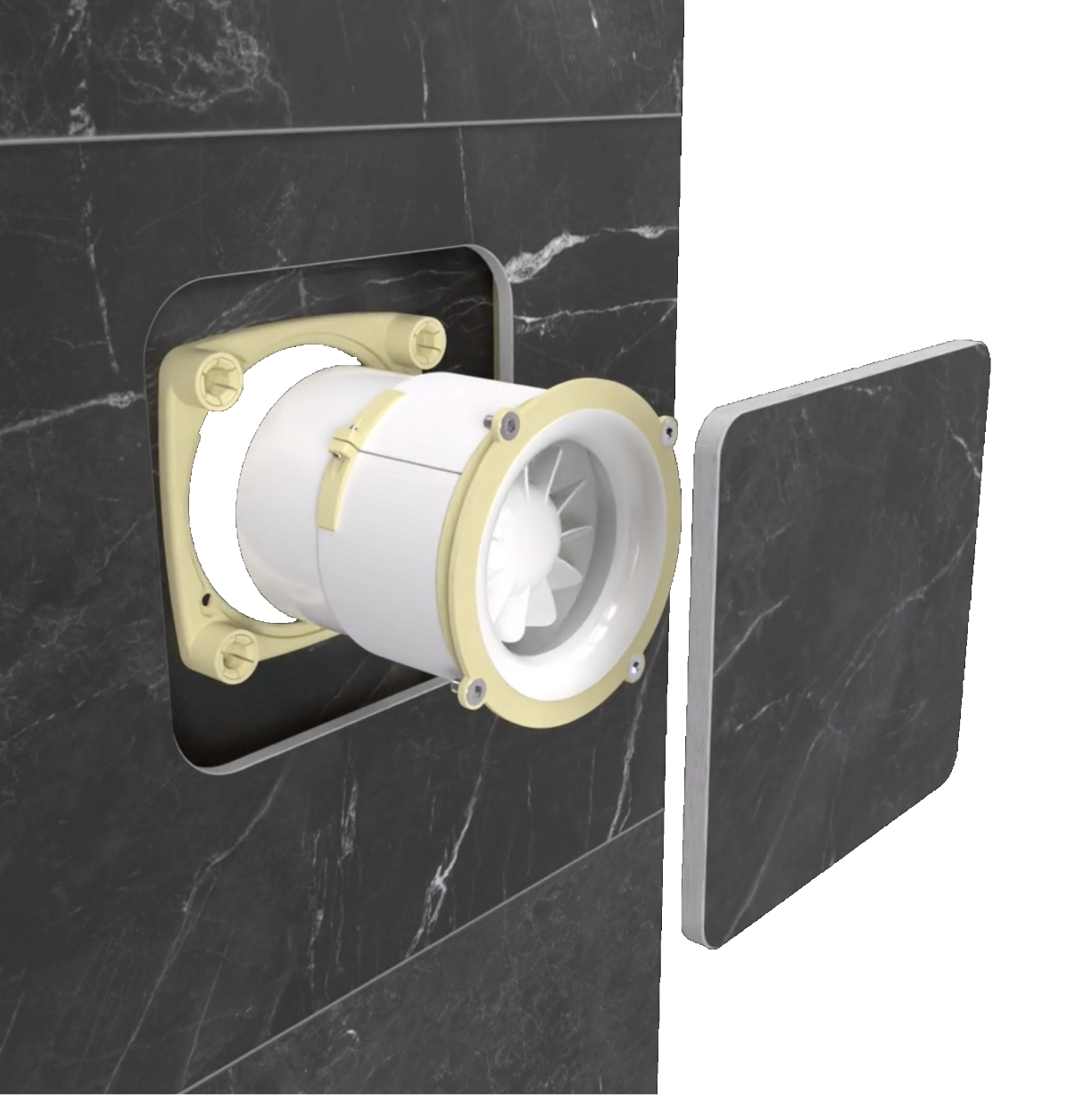

A modular installation system designed for a seamless, minimalist bathroom finish. This tileable system enables the concealed mounting of standard duct fans 100mm, 125mm or 150mm, leaving only a subtle perimeter gap for airflow.

Engineered for both aesthetics and practicality, the airflow gap is precisely calculated to match the ducting area for optimal performance. The system ensures full access for maintenance while maintaining a flawless, fully-tiled look.

Tile cut-outs can be performed manually using a tile engraver, angle grinder and drill or via precision water-jet cutting. While manual cutting is efficient for standard installs, water-jet cutting is ideal for premium tiles or natural stone to ensure a flawless, architectural finish.

The system blends seamlessly with ceramic, porcelain, or natural stone surfaces and is compatible with tile thickness up to 12 mm.

If you are using water jet cutting for your project, please contact us to get your drawing files.

Watch the detailed installation video and demonstration

Safety & Best Practice

At Yaromaister, we advocate for the highest standards of safety on every project. When performing tile cut-outs or using the included core drill bit:

PPE: Always wear appropriate Personal Protective Equipment, including safety goggles and a high-efficiency dust mask (FFP3 rated).
Dust Control: We recommend wet-cutting where possible or using a dedicated vacuum extraction system to minimize airborne silica dust.
Handling: Ensure all power tools are handled by competent individuals in accordance with the manufacturer's instructions.

What is in the box

· Fan mounting frame

· Fan fixing frame

· Fan mounting collar

· Cap holder

· Corner fixation clips

· Adjustment tool

· Fixing screws

· Adhesive stickers with cut-out template

Consumables (optional):

· Tile cutting disc with holder

· Tile sanding discs with holder

Proven durability

· Proven durability: Tested in 500+ projects worldwide

· 2-year warranty

Delivery & Returns

· Next-day dispatch from our UK warehouse

· Free UK delivery

· Full Delivery & Returns details available in our Terms & Conditions
